Red Reflector with built in LED light

129 Series Marker Lamps
 • Low Profile - Only 13mm
 • ECE Australian Road Approved
 • IP67 Rated
 • Voltage Range 12-24 Volt
 Fitting Instructions
 Drill a minimum 8mm hole or larger for the wire outlet. Peel off paper protector for the 3M tape.Push
lamp firmly into position. The lamp is held in place by the heavy duty 3M tape.

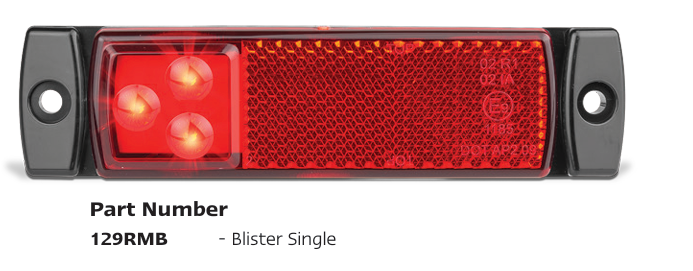

 Part Number
 129RMB- Blister Single
 Function Marker Lamps

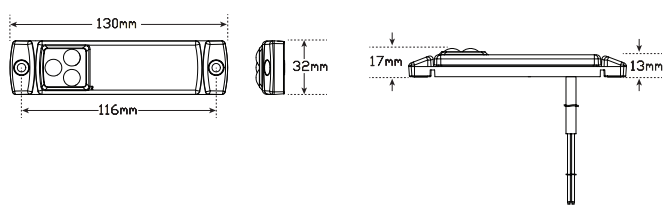

 Size 130mm x 32mm x 13mm
Voltage 12-24 Volt
 Cable 50cm
 Lens PMMA Acrylic
 Base ABS
 Draw Rear End Side Front
 @13.8V 0.10A 0.03A 0.01A
 @28V 0.01A 0.04A 0.01A
 Approvals Function Approval No.
 ECE Rear End Outline R1-E9-01.1185
 ECE Red Reflector IA-E9-02.1185

Fitting Instructions
Drill a minimum 8mm hole or larger for the wire outlet. Peel off paper protector for the 3M tape.Push
lamp firmly into position. The lamp is held in place by the heavy duty 3M tape
